More Cowbell? We've Got You Covered!

Introducing the Jake's Custom Shop Advanced Cowbell Eurorack Module. Unleash the iconic sound of the TR-808 cowbell in a fully analog unit, the way it was meant to be played. As any good Eurorack module should, you get additional tonal controls beyond the standard 808 circuit.

Features:

• Authentic TR-808 Cowbell Sound
• Trigger and Accent Inputs for Dynamic Performance
• Two Pitch Controls for precise tuning of each analog oscillator.
• Decay Knob for note-length variation
• Volume Level control for perfect blending
• Not-to-bright LED trigger indicator light.
• Handcrafted with precision and passion
• Compact 6HP Eurorack module
• Add punchy percussion, funky grooves, and undeniable energy to your modular setup.

Perfect for:

• Electronic music production
• Live performance
• Sound design
• Adding a unique sonic element to your tracks




FUNCTIONALITY

Input
Attribute	Data
TRIGGER	Impulse or square wave used to control the cowbell.
ACCENT	Square wave input jack used to boost the volume.
PITCH (1 & 2)	Potentiometers for tuning each of the two oscillators that produce the cowbell ringing.
DECAY	Potentiometer control for the length of the cowbell.
LEVEL	Output volume.

Output
Attribute	Data
AUDIO OUT	Audio Output, 10Vpp





AUDIO SAMPLE






Thanks to @real_mr_scoops for this awesome sample!




View this post on Instagram

A post shared by Mister Scoops (@real_mister_scoops)





ELECTRICAL CHARACTERISTICS





Attribute	Min	Typ.	Max
Current Draw [mA]     +12V     +5V     -12V		50mA 0mA 5mA
Trigger Input [V]	3
Accent Input [V]	3		12
Audio Output [V]			10

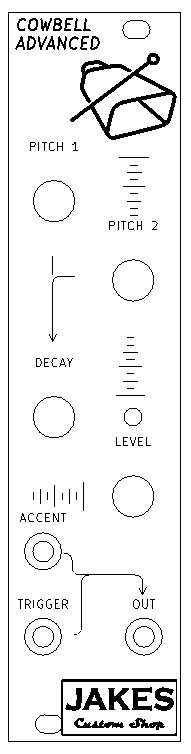

MECHANICAL DATA

Attribute	Data
PCB dimensions	29 x 100mm
Panel dimensions	30.48 x 128.6mm [6HPx3U]
Depth of module	15 mm










Product on Modular Grid

DOWNLOADS




JCS Cowbell Advanced Datasheet.pdf







All Jake's Custom Shop items carry a 100% satisfaction guarantee. If for any reason you don't like it I will personally cover your return shipping and fully refund your order; never any questions asked!
